Descriptions

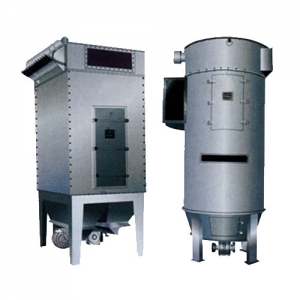

On the basis of MC-I spec, the square spec pulse dust filter with cloth bag MC-II is the amended and improved one. In addition to the advantages that I spec is high in the dust removing efficiency, big in the air capacity, stable in the performance, easy in operation and maintenance, MC-II has the better result than MC-I. Such as: it is not easy to build up the powder and its application is wide and so on. The device is widely used for the ventilation, dust removing and powder restoration in the grain, food, feed, metallurgical, chemical, building material, medical and other industries.
Spec of installation
Technical paramenters
| parameters\spec | MC24 | MC36 | MC48 | MC60 | MC72 | MC84 | MC96 | MC120 | |
| Filtering area(m²) | 18 | 27 | 36 | 45 | 54 | 63 | 72 | 90 | |
| Filtering bag number(piece) | 24 | 36 | 48 | 60 | 72 | 84 | 96 | 120 | |
| Filtering air speed(L/m².s) | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 | |
| Filtering air volume(m³/h) | 1300-2600 | 1950-3900 | 2600-5200 | 3240-6480 | 3900-7800 | 4550-9100 | 5200-10500 | 6500-13000 | |
| Max.Overall dimension | L | 1000 | 1400 | 1800 | 2200 | 2600 | 3000 | 3560 | 4360 |
| W×H | 1450×3700 | 1450×3850 | 1450×4100 | ||||||
| Dust remover | Pulse valve number | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
| Compressed air consumption m³ | 0.07-0.30 | 0.11-0.40 | 0.15-0.50 | 0.22-0.60 | 0.22-0.60 | 0.25-0.90 | 0.29-0.90 | 0.37-0.90 | |
| Compressure air pressure(kg/cm²) | 5-7 | ||||||||
Installation diagram
主要尺寸
| parameters\spec | MC24 | MC36 | MC48 | MC60 | MC72 | MC84 | MC96 | MC120 |
| A | 1000 | 1400 | 1800 | 2200 | 2600 | 3000 | 3560 | 4360 |
| B | 1450 | |||||||
| C | 780 | 1180 | 1600 | 2000 | 2400 | 1400+1400 | 1670+1670 | 2080+2080 |
| D | 1230 | |||||||
| E | 3700 | 3850 | 4100 | |||||
| F | 3500 | 3600 | 3850 | |||||
| G | 1700 | 1750 | 2000 | |||||
| H | 3040 | 3090 | 3300 | |||||
| a | 476 | 576 | 876 | 876 | 1076 | 676 | 776 | 876 |
| b | 336 | 376 | ||||||
| c | 400 | 500 | 800 | 800 | 1000 | 600×2 | 700×1 | 800×2 |
| d | 260 | 300 300×2 | ||||||
| e | 576 | 576 | 876 | 876 | 1076 | 1276 | 1326 | 1436 |
| f | 276 | 376 | ||||||
| g | 500 | 500 | 800 | 800 | 1000 | 1200 | 1250 | 1360 |
| h | 200 | 300 | ||||||
| k1×n1 k1×2 | 110×4=440 | 108×5=540 | 120×7=840 | 120×7+100×2=1040 | 110×4+100×2=640 | 110×5+95×2=740 | 120×7=840 | |
| k2×n2 | 150×2=300 | 113.3×3=340 | ||||||
| k3×n3 k3×2 | 108×5=540 | 108×5=540 | 120×7=840 | 120×7=840 | 120×7+100×2=1040 | 124×10=1240 | 120×9+105×2=1290 | 120×10+100×2=1400 |
| k4×n4 | 120×2=240 | 113.3×3=340 | ||||||
| dust discharge outlet flange | 150 | 150 | 150 | 150 | 150 | 200 | 200 | 200 |
-
