Descriptions

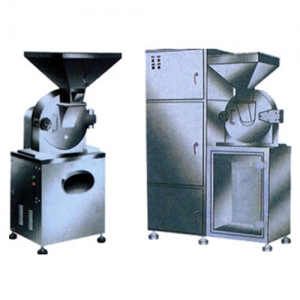

The machine (set) is extensively used in pharmaceutical, chemical, food and pesticide industries for pulverizing dry brittle materials.
Technical paramenters
| spec | unit | 20B/20Bset | 30B/30Bset | 40B/40Bset | 60B/60Bset |
| productive capacity | (kg/h) | 60-150 | 100-300 | 160-800 | 500-1500 |
| speed of main shaft | （r/min） | 4500 | 3800 | 3400 | 2800 |
| feeding granule size | （mm） | 6 | 10 | 12 | 15 |
| fineness of pulverization | （mesh） | 60-150 | 60-120 | 60-120 | 60-120 |
| grinding motor power | （kw） | 4 | 5.5 | 11 | 15 |
| fan power | （kw） | 1.5 | 1.5 | 1.5 | 2.2 |
| weight | （kg） | 250 | 320 | 550 | 680 |
| （L×W×H）overall dimension | （mm） | 550×600×1250 | 600×700×1450 | 800×900×1550 | 1000×900×1680 |
| （L×W×H）overall dimension （set） | （mm） | 1100×600×1650 | 1200×650×1650 | 1350×700×1700 | 1550×1000×1750 |
-
