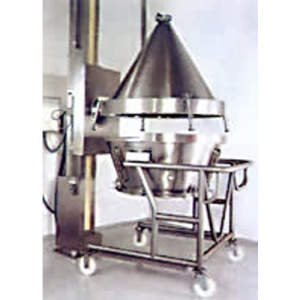

YS Fluid Bed Hopper Lift Machine (bowel inverter)
next
YS Fluid Bed Hopper Lift Machine (bowel inverter)
Description
It’s designed to meet GMP standard.

  • Product Details
  • Inquire Now

Applications

It’s designed to meet GMP standard;
Integrated with FL,PGL,GFG and FG series of Fluid bed to realize dust-free discharge.

Features

Adopt hydraulic control, it is safe and reliable;
Integrated with fluid-bed to realize seal operation ;
GMP standard design and manufacturing.



Technical paramenters

spec YS60 YS120 YS200 YS300 YS500
capacity kg 150 250 350 500 750
product container weight(empty) kg 85 120 160 220 250
motor power kw 1.1 1.1 2.2 3.0 3.0
lifting speed m/min 0-4 0-4 0-4 0-3.5 0-3
A mm 4000 4000 4000 4000 4000
B mm 3900 3900 3900 3900 3900
C mm 3700 3700 3700 3700 3700
D mm 2200 2200 2200 2200 2200
E mm 1400 1400 1600 1700 1800
F mm 1095 1290 1495 1690 1890
