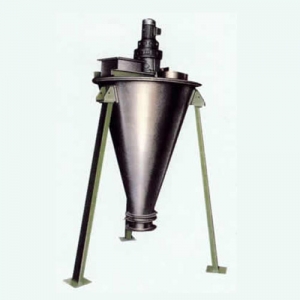

The machin is new type high-efficiency and precise mixer, it's suitble for mixing the powder state materiais in the pharmaceutical, chemical, food, instant soluble and other industries.
The machine structure is reasonable and its external appearance is beautiful.All the sections of contacting the materials use the stainless steel.
Technical paramenters
| spec | DSH0.3 | DSH0.5 | DSH1 | DSH2 | DSH4 | DSH6 | DSH10 |
| total volume(m3) | 0.3 | 0.5 | 1 | 2 | 4 | 6 | 10 |
| feeding rate | 0.4--0.6 | ||||||
| diameter of materials to be mixed (um) | 40--3000 | ||||||
| operation condition | Ambient temperature,normal pressure,sealed to dust | ||||||
| production capacity(kg)p=1g/cm3 | 180 | 300 | 600 | 1200 | 2400 | 3600 | 6000 |
| power(kw) | 2.2 | 2.2 | 5.5 | 5.5 | 11 | 20.7 | 30.7 |
| time of mixing (min) | 4--10 (Special material to be determined by trial) | ||||||
| weight(kg) | 500 | 1000 | 1200 | 1500 | 2800 | 3500 | 4500 |
-
